Description

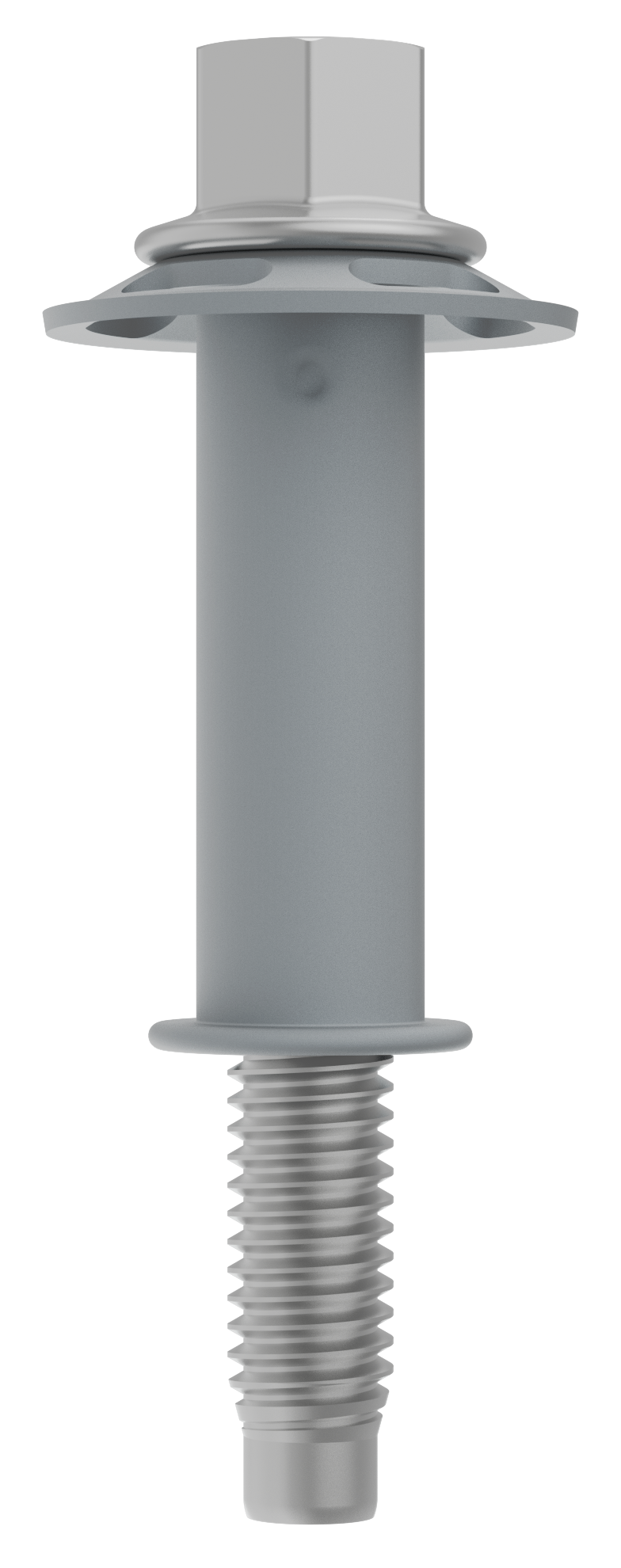

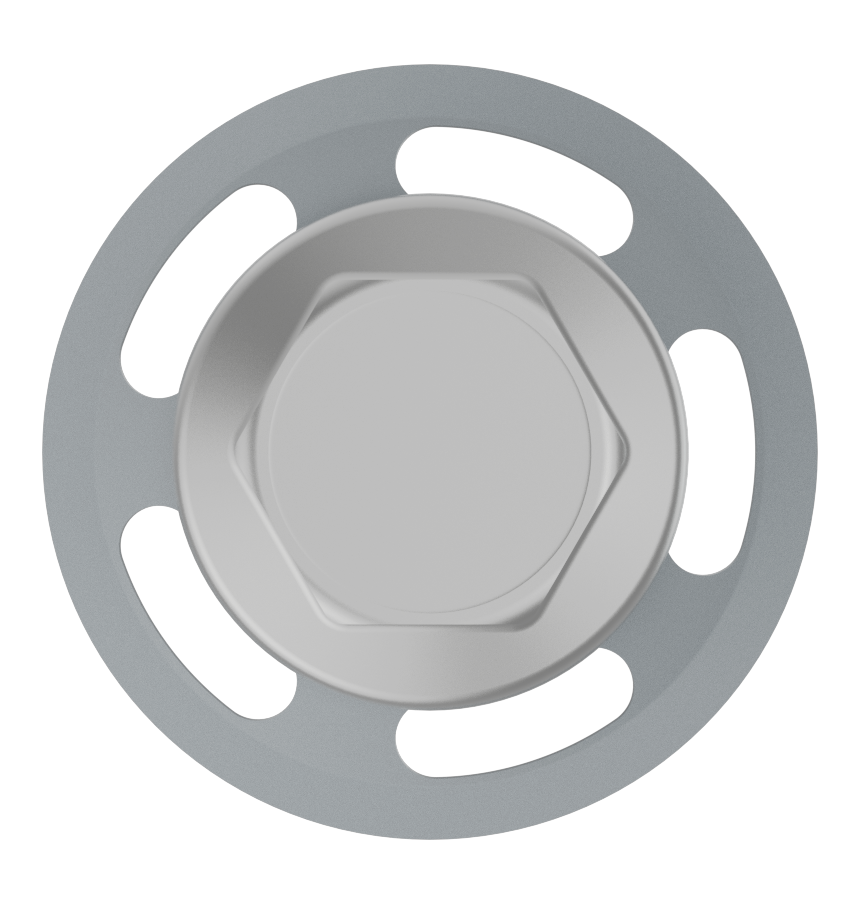

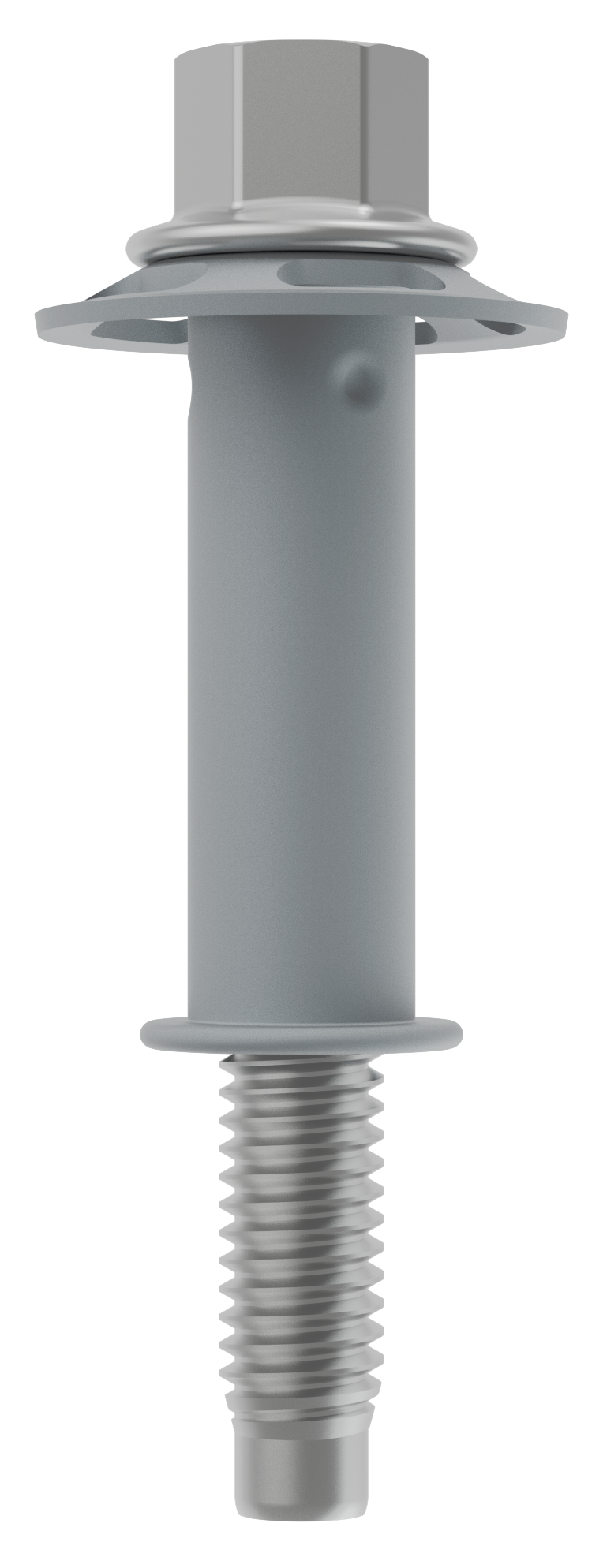

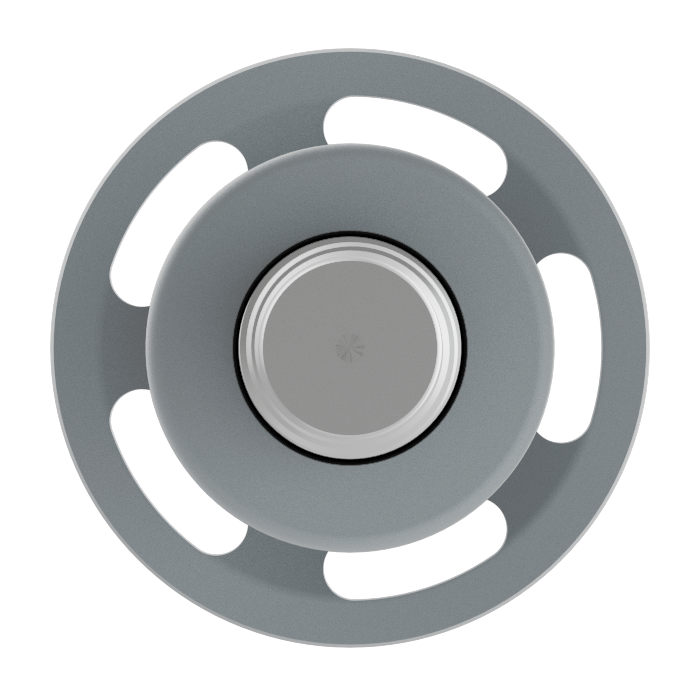

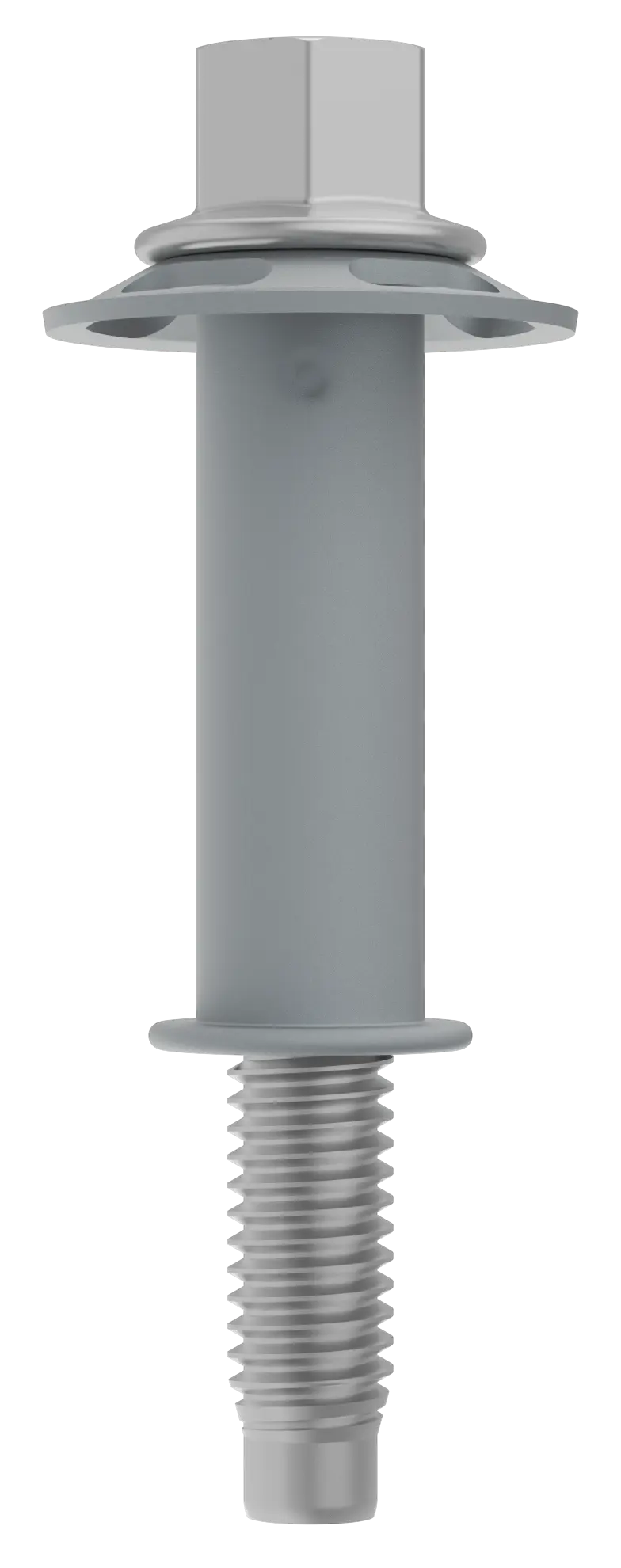

A lightweight, compression limiting, pre-captured fastener assembly that compensates for height variations while maintaining stable clamp loads.
Features and Benefits
Wide Tolerance Compliance
Accounts for static and dynamic changes in component height by using a tuneable spring flange.
Compression Limiting
Protects substrates and maintains consistent clamp load by limiting compression in the assembled joint.
Clamp Load Consistency
Provides predictable and stable fastener clamp load.
Enables Lightweighting
Achieves 50% weight reduction over other comparable metal solutions due to thin-walled design.
Ready-Set Pre-Assembly
Installs and retains in substrate with optional pre-captured bolt/stud prior to final assembly.
Application Areas
Electrical RoutingLighting Wiring/HarnessMain Body, Interior Wiring/HarnessOther Electrical RoutingPropulsion Low Voltage Wiring/HarnessSafety Wiring/Harness
ExteriorBumpersFront EndLightingOther ExteriorRear EndUnderbodyWaterbox/ Draining SystemWindshield Wipers
Fluid & Air RoutingBrakes SystemFuel SystemHVACOther Fluid + Air RoutingThermal Management System - EV
